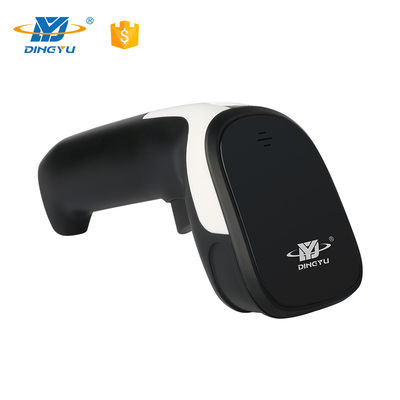

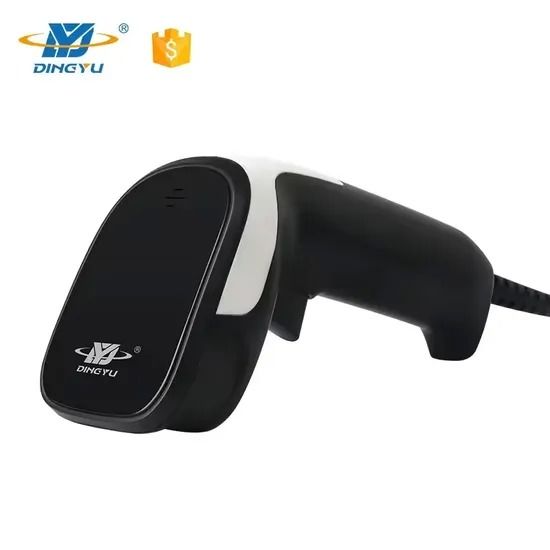

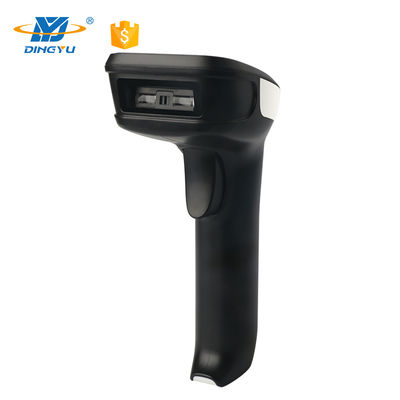

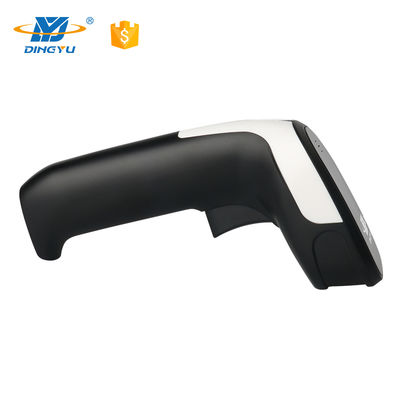

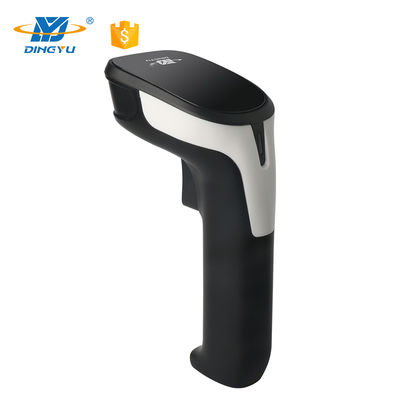

Name: DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

বাড়ি পণ্য 1D বারকোড স্ক্যানার

DS5110 1D CCD Barcode Scanner with 32 Bit CPU and 600mm Depth

পণ্যের বিবরণ:

প্রদান:

ন্যূনতম চাহিদার পরিমাণ:	1

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

মডেল নং।:	DS5110	ইন্টারফেস টাইপ:	ইউএসবি
স্ক্যান উপাদান:	সিসিডি	রেজোলিউশন:	3 মিলি কোড 39
মাঠের গভীরতা:	10-600 মিমি	স্ক্যান মোড:	ম্যানুয়াল, অবিচ্ছিন্ন, অটো স্ক্যান, ফ্ল্যাশিং
প্রিন্ট কনট্রাস্ট:	20%	সিপিইউ:	32 বিট
তারের দৈর্ঘ্য:	1.5 মি	ওজন:	147 গ্রাম
যোগাযোগ:	USB(USB-KBW,USB-COM),RS232	অপারেটিং তাপমাত্রা:	-20 থেকে 50 ডিগ্রি
মাত্রা:	L161mm * W63mm * H80mm	ড্রপ উচ্চতা:	1.5 মি
হালকা উত্স:	দৃশ্যমান লাল আলো, 625 ± 10nm
বিশেষভাবে তুলে ধরা:	1D CCD barcode scanner with 32-bit CPU , DS5110 barcode scanner 600mm depth , 1D barcode scanner with long-range scanning

High Performance Processor 1D Handheld Barcode Scanner CCD Barcode Reader

Product Overview

The DS5110 is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. Capable of reading barcodes from various surfaces including paper, goods, and screens, this scanner is ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, and inventory management.

Technical Specifications

Parameter	Specification
Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/s
Depth of Field	10mm-600mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing
Scan Angles	Pitch: ±60° Roll: ±30° Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, and 20+ other formats
Dimensions	161mm × 63mm × 80mm
Weight	≈147g (without cable)
Communication	USB (USB-KBW, USB-COM), RS232
Power Supply	DC 5V@80mA (operating)
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 70ºC
Drop Resistance	1.5m

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D barcodes with high accuracy
High-performance processor enables fast decoding (3mil precision)
Supports multiple languages and operating systems
Dual interface options: USB and RS232
Ideal for supermarkets, warehouses, mobile payments, and chain stores

Product Images

Packaging & Shipping

Certifications

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan is a professional manufacturer with 18 years of experience in barcode scanner development. Our products undergo rigorous testing including engine age tests, wire bend tests, switch life tests, and shock resistance tests. All scanners are CE, FCC, and ROHS certified.

Q2: What is your quality control process?

We conduct 1 million wire bend tests and button tests. Every device is thoroughly tested before shipment.

Q3: What is the warranty period?

12 months warranty from date of purchase.

Q4: How do you maintain stable performance?

We use assembly line production with each product tested at least 4 times before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM development.

Q6: What are your company strengths?

We have dedicated R&D, production, and sales departments with specialized teams ensuring product quality and customer satisfaction.

Q7: Are drivers required?

No, our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, Android, and other systems.
