Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU

Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU

  • Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU
  • Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU
  • Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU
  • Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU
  • Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU
  • Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU
Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU
পণ্যের বিবরণ:
প্রদান:
ন্যূনতম চাহিদার পরিমাণ: 1
মূল্য: 5
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
মডেল নং: DE2106 ইন্টারফেসের ধরন: ইউএসবি
স্ক্যান গতি: 25CM/S স্ক্যান উপাদান: সিএমওএস
রেজোলিউশন: 4 মিলি চিত্র সেন্সর: 640*480
স্ক্যান মোড: অটো স্ক্যান, ক্রমাগত প্রিন্ট কনট্রাস্ট: 25%
ওজন: 3.5 জি পাওয়ার সাপ্লাই: DC 3.3V, 150mA কাজ
মাত্রা: 22mm L * 14.6mm W * 11.3mm H ড্রপ উচ্চতা: 1.2 মি
অপারেটিং টেম্প।: -20ºC থেকে 50ºC স্টোরেজ টেম্প।: -40ºC থেকে 60 ডিগ্রি সেন্টিগ্রেড
আর্দ্রতা: 5% থেকে 95% (নন-কনডেনসিং)
বিশেষভাবে তুলে ধরা:

4mil Resolution Barcode Scanner Module

,

640*480 Image Sensor 2D Barcode Scanner

,

32-bit CPU Embedded Barcode Scanner

Barcode Scanner Reader USB TTL Mini Embedded 2D Barcode Scanner Module
Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU 0

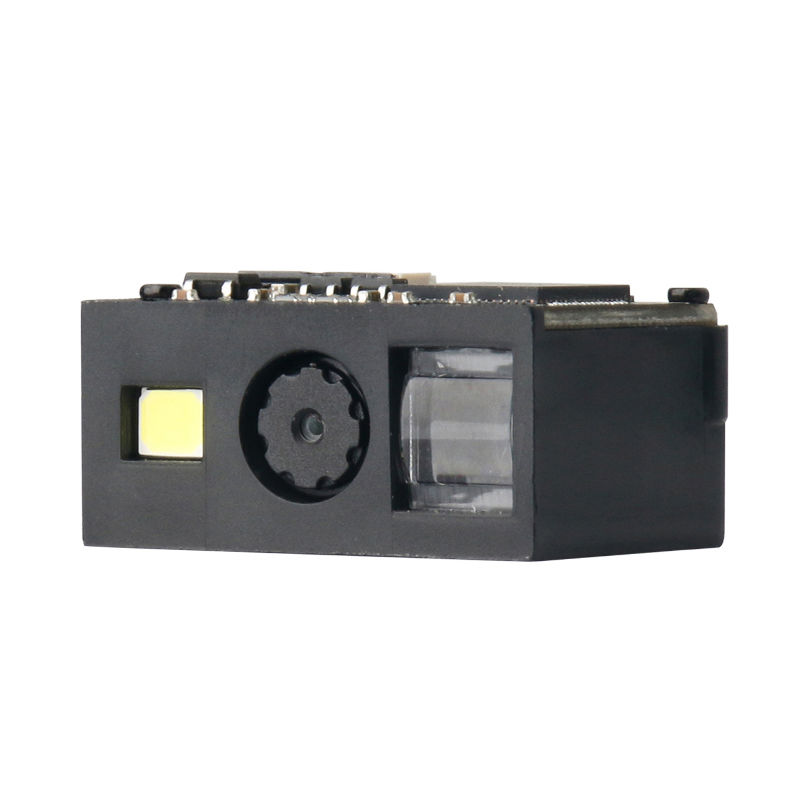

The DE2106 is a compact embedded barcode scanner module featuring advanced CMOS image recognition technology and intelligent image processing system. This versatile scanner supports both 1D and 2D barcodes across various media types including paper, products, and digital screens.

Key Features
  • Compact design ideal for wireless machines and self-service terminals
  • Reads all mainstream 1D and 2D barcodes (minimum 4mil resolution)
  • High brightness scanning capability for low-light environments
  • Dual interface support: USB and TTL
  • Low power consumption with DC 3.3V operation
  • Compatible with multiple systems and languages for easy integration
Technical Specifications
Scan Type CMOS
Light Source White light
CPU 32-bit
Resolution 640×480
Reading Precision ≥4mil/0.1mm (PCS90%, CODE 39)
Decoding Speed 25CM/S
Scan View 36°×28°
Scan Modes Manual, Auto sense, Continuous
Scan Angles Pitch: ±50°, Roll: ±360°, Skew: ±50°
Supported Symbologies
1D Barcodes UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA25), Codabar (NW-7)
2D Barcodes QR Code, Micro QR Code, Data Matrix, PDF417
Physical Specifications
Weight <3.5g
Dimensions 22mm (L) × 14.6mm (W) × 11.3mm (H)
Interface FFC 12PIN Pitch 0.5
Power Supply DC 3.3V, 150mA (Work)
Environmental Specifications
Operating Temperature -20°C to 50°C
Storage Temperature -40°C to 60°C
Humidity 5% to 95% (non-condensing)
Drop Height 1.2m
Product Images

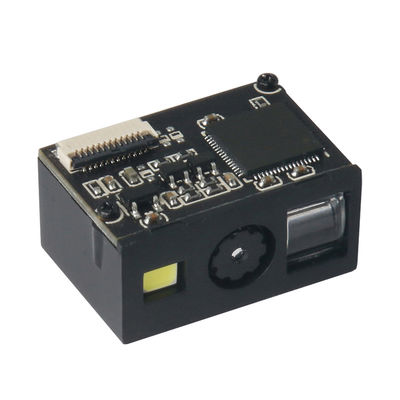

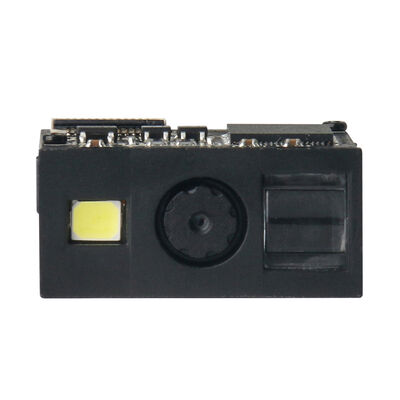

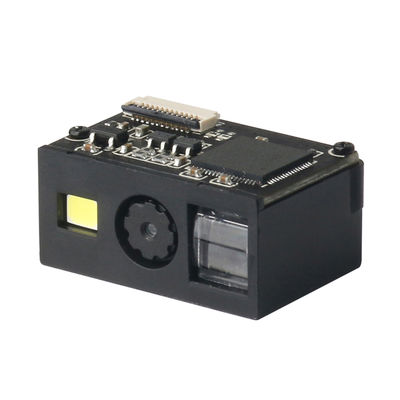

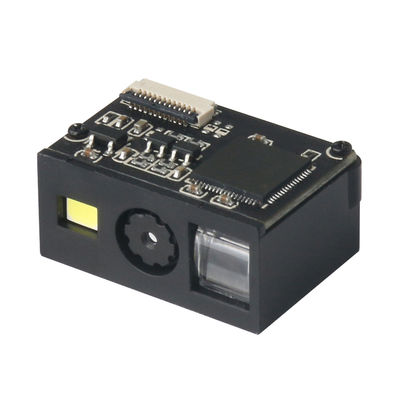

Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU 1 Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU 2 Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU 3 Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU 4
Packaging & Shipping
Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU 5
Certifications
Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU 6
